Thermal

Overview

TAS-III

TF-138, TR-138, and LP-138

Available in flush or raised panel designs, our 1 3/8” medium-duty thermal doors are well-suited for larger garages or commercial settings where thermal door dependability along with contemporary design is required.

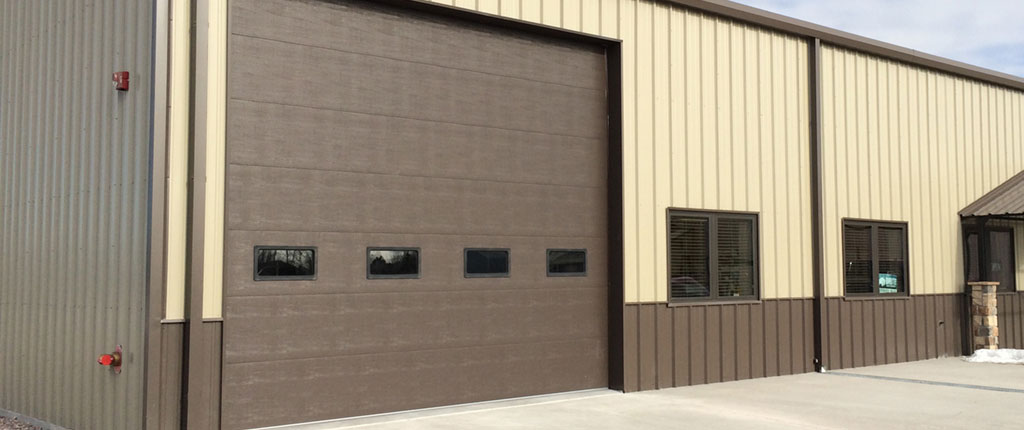

TF-II, TR-II, and LP-II

Available in flush or raised panel designs, our 2” medium-duty thermal doors offer a clean modern look for any building. Designed to combine thermal door dependability with contemporary design to provide you with a clean, crisp look and strong insulating performance.

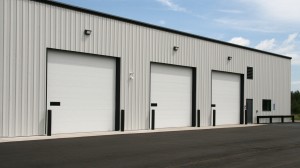

TAS-III

For the most demanding commercial environments, the TAS-III offers superior durability and thermal efficiency. Available in a flush panel design, this 3” heavy duty insulated door delivers unmatched performance.

Details

Construction

Strong woodgrain embossed 26 gauge hot-dipped galvanized steel. Pre-finished exterior & interior, then coated with baked-on polyester primer and acrylic finish.
1 3/8” section thickness with flush panel design, 2″ section thickness with flush or raised panel design & 3″ sectin thickness with flush panel design.
Polystyrene insulation bonded to 26 gauge steel skin, providing thermal protection to the edge of each section.
Tough PVC seal provides continuous thermal break on all sections, reducing thermal transmissions.
Uniquely designed tongue & groove section joints create a weather-resistant seal against rain, snow and wind.
18 gauge hot-dipped galvanized center stiles are recessed, concealed and carried the full height of the section providing superior strength and durability compared to commonly used hinge pads.
Aluminum bottom weather seal retainer is corrosion resistant.
Tough “U”-shaped bottom weather seal helps protect against the elements.
Hinges are 14 gauge-minimum, hot-dipped galvanized steel for lasting durability.
Wind load package available.
1 3/8″ R-value = 7.0, 2″ R-value = 8.9, 3″ R-value = 15.1
